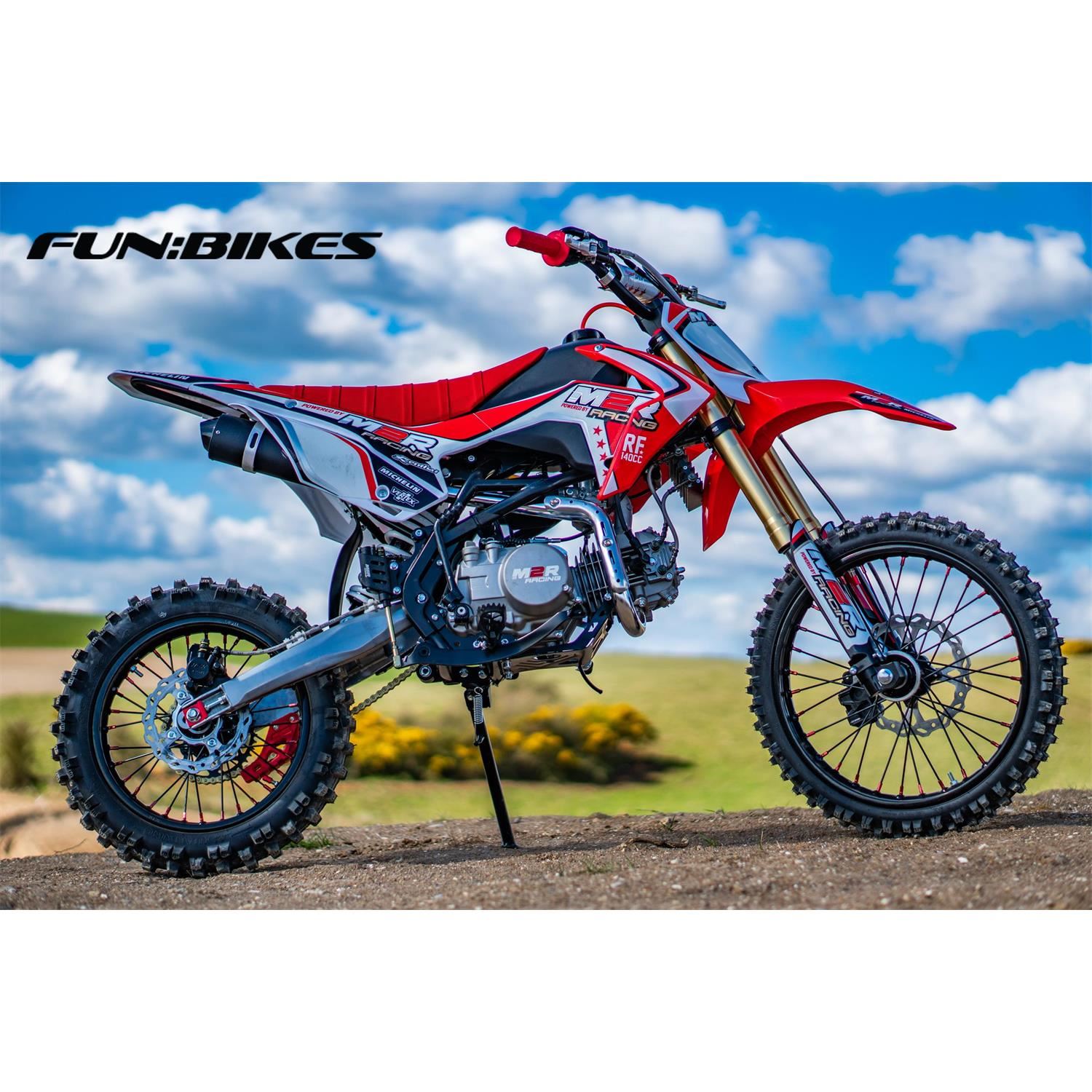

Name: M2R RF140 S2 140cc 17/14 86cm Red Dirt Bike
SKU: 807
Price: 795.00 USD
Availability: InStock

M2R RACING RF140 Dirt Bike

Boxed Dimensions	L142cm x W43cm x H64cm
Brakes	Disc Brakes
Cooling	Oil Cooled
Drive	Manual
Engine Spec	4 Stroke – Single Cylinder
Engine Type	Petrol Engine
Frame	Chromoly Steel
Fuel	Unleaded
Fuel Capacity	3.5 Litres
Gross Weight	79 Kg
Manufacturer Recommended Age	18+
Max Rider Weight	80 Kg
Motor Size	140cc
Requires Some Assembly	Assembly: Handlebars – Front Wheel – Front Mudguard – Rear Suspension – Full Nut & Bolt Check – Oil Change
Rim Size	F: 17 inch – R: 14 inch
Seat Height	86cm
Start Type	Kick Start
Suitability	Guide 14+ At Parents Discretion – Height, Weight & Skill should be considered
Terrain	Full Off Road
Throttle Type	Twistgrip
Top Speed	50+ MPH / Geared For MX Track Use
Tyres	Aggressive MX tyres
Warranty	30 Days Full Cover / 6 Months Manufacturing Defects (Excludes Consumable Items)

* Product specifications are subject to change without notice and may vary from those shown. Errors and omissions excepted.

Recently revised and improved, the series 2 RF140 pit bike has been built on the CRF110 style platform.

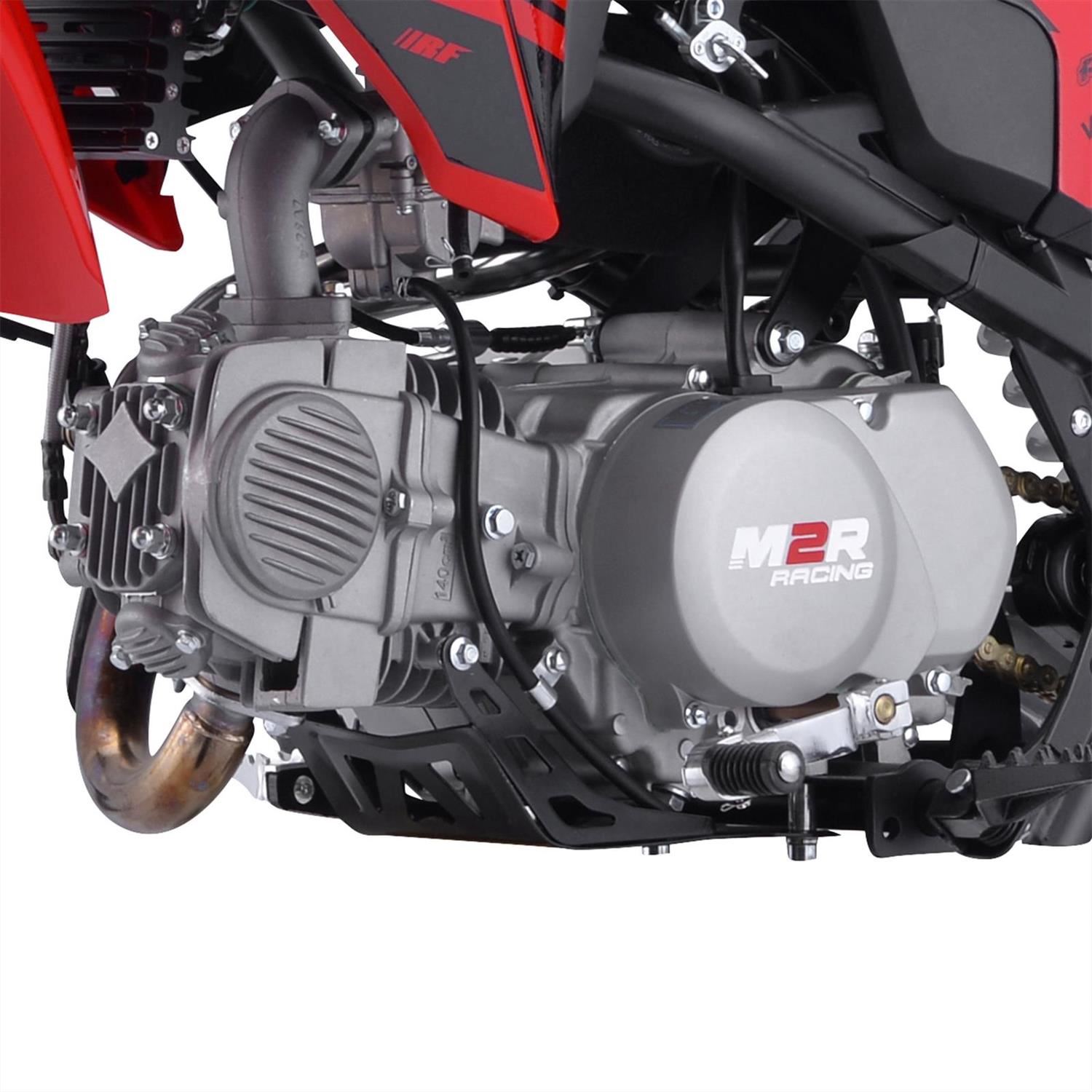

YX Motorsports 140cc 4-stroke engine

It features a YX Motorsports 140cc 4-stroke engine. For pure performance reasons, the gearbox has been fitted with a racing pattern sequence. Neutral at the bottom, then 1-2-3-4 gears up.

Reinforced Black SDG Hubs

Reinforced Black SDG Hubs, have been laced with satin black spokes, anodised red spoke nipples and strongly reinforced powder coated black steel rims. Super chunky block pattern knobbly motocross tyres offer an awesome off-road grip. Not only is this wheel set up super strong, but looks freaking cool. Trick as hell.

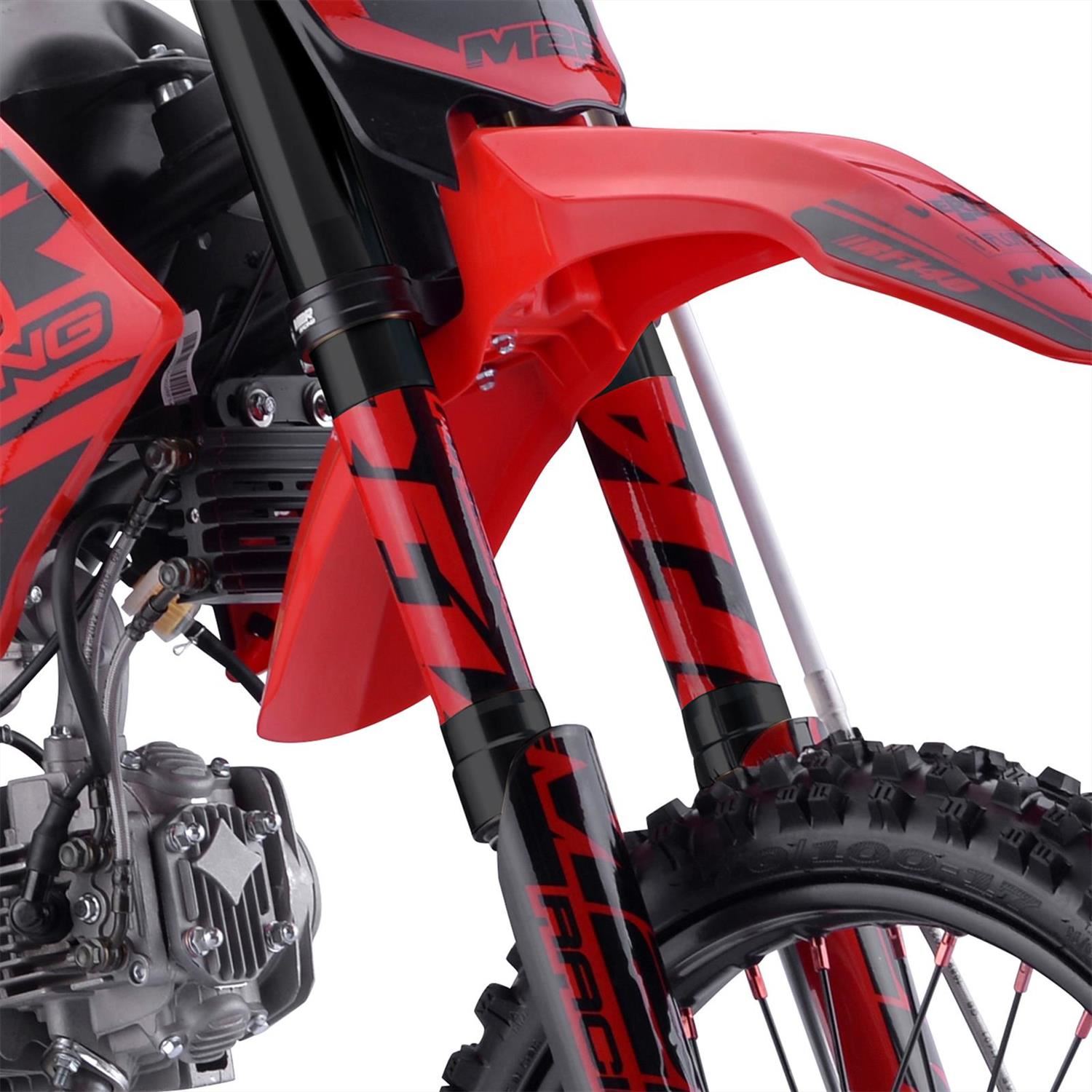

Hydraulic M2R RACING Front Forks

The trick anodized inverted hydraulic M2R RACING front forks work well, feel great and have plenty of travel keeping the front wheel planted where it’s needed.

M2R RACING Adjustable Rear Shock

The M2R RACING rear shock is spring adjustable, works well, and offers great feedback to the rider.

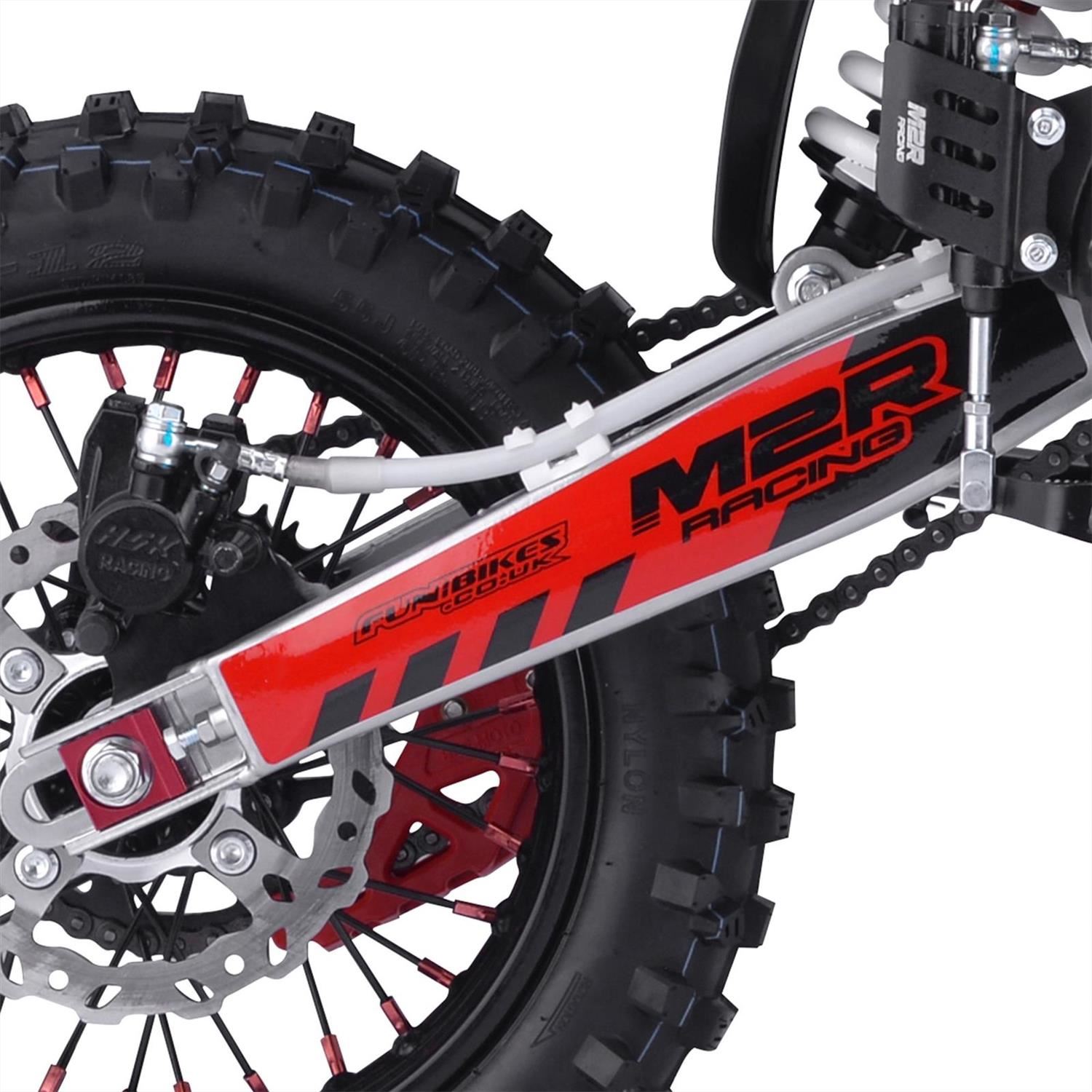

Extended Swing Arm

The chassis also features an extended swing arm which helps with stability at speed over whoops and ruts.

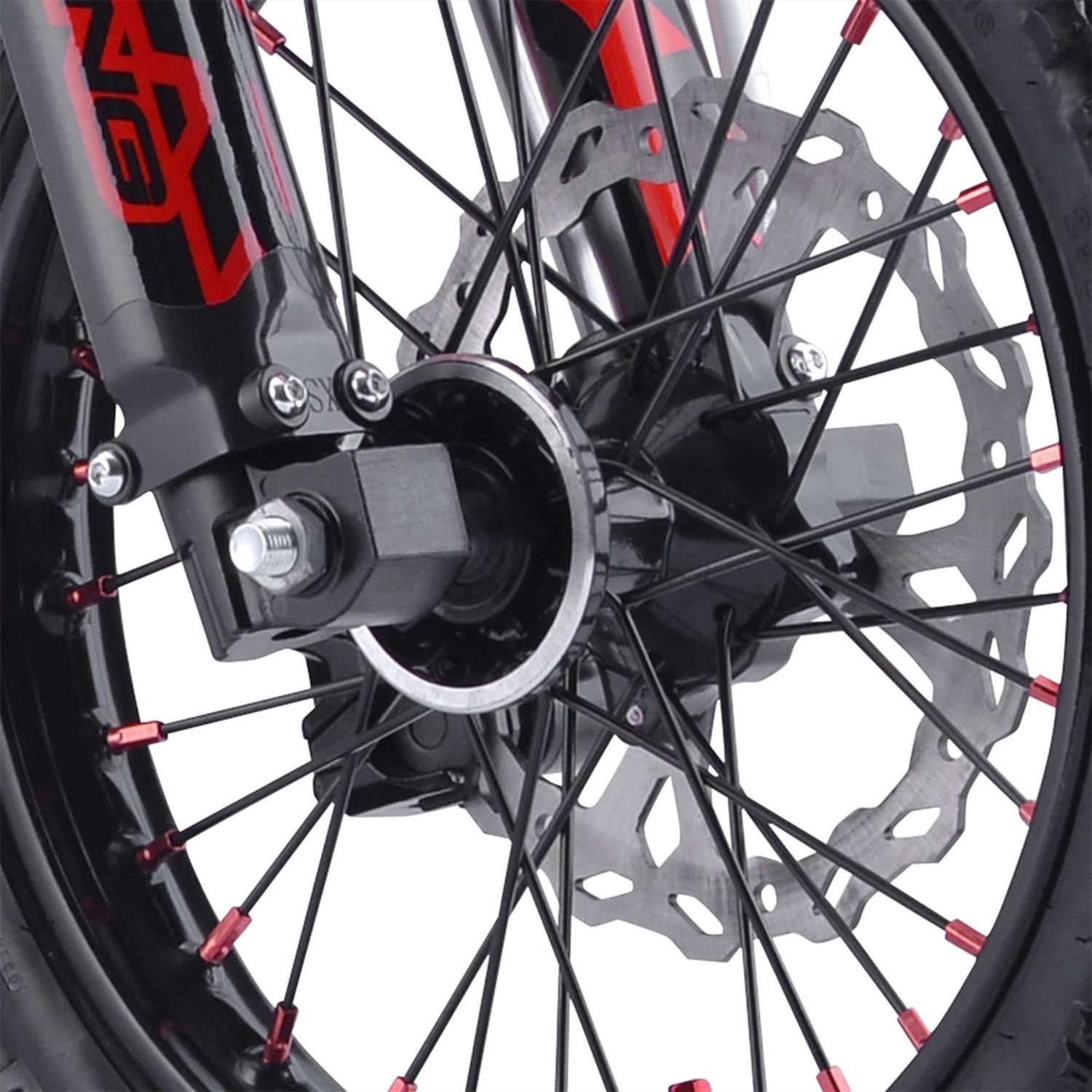

Vented Brake Disks

If you’re going fast then you want to be able to stop sharpish. Fitted up front is the same twin pot hydraulic front brake as fitted to our factory works spec supermoto race bikes, including a huge 220mm heat dissipating vented wavy front disc. The rear brake, also hydraulic, is a single pot, again coupled up to a vented 190mm wavy disc.

Gripper Seat

A few other nice touches at no extra charge are… a gripper seat, copied from motocross, it helps the rider keep seated in one position, rather than slipping back and forth along the seat.

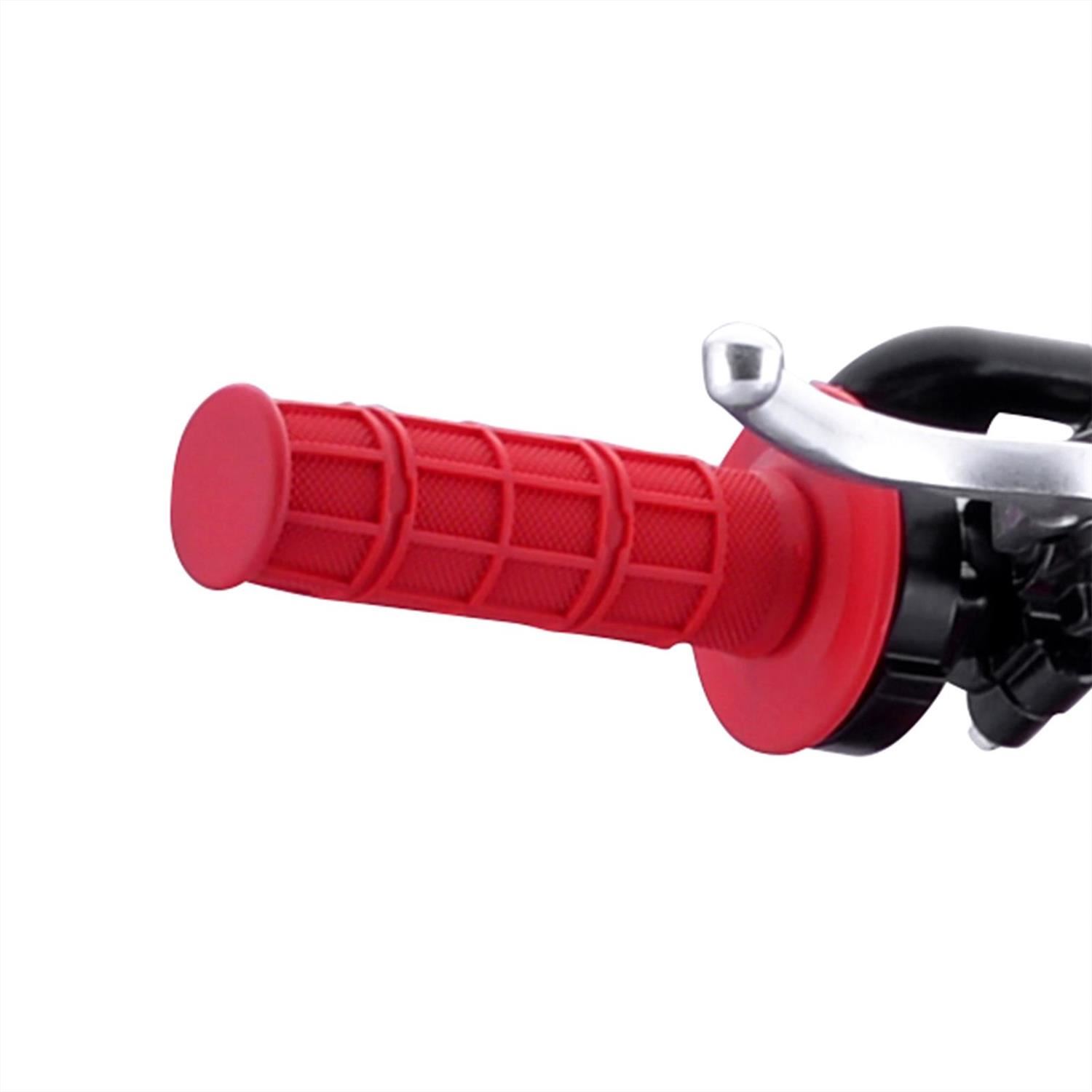

Soft Rubber Red Grips

Soft rubber red grips are colour coded with the CNC chain adjusters, rear chain guide, fuel line and breather pipe.

For hooning about on fields, through wooded trails, gravel pits and tracks, if you’re looking for a really decent bike, that’s got some ‘trick’, then this is it. And if you want to go further and motocross it, you can easily upgrade the suspension for the ultimate off-road experience.

Buy it today and you could be riding it tomorrow

Features:

YX Motorsport 140cc 4-Stroke Engine
Nibbi Carburettor
M2R Racing CNC Oil Cooler
Race Pattern N1234 Gearbox
Kick-In-Gear Start
Satin Black Chromoly Frame
M2R Racing Inverted Front Fork
M2R Racing Hydraulic Rear Shock
M2R Racing Extended Rear Swing Arm
Super Strong ‘Trick’ Wheel Set
Black & Red Gripper Seat
Red Soft Grips
Red CNC Chain Adjusters
M2R Racing ‘Works’ Twin Pot Race Front Brake System
Black Steel 17 inch front wheel / 14 inch rear wheel
M2R Racing High Strength Braced handlebars
Deep Tread Aggressive Motocross Tyres
M2R Racing 3M Graphic Kit

Just for reference, we find this is most commonly purchased for ages 14+. The suitability of the product to a particular child is at the Parents Discretion – Height, Weight & Skill should also be considered.

support icon

Support

We offer a full support service with FREE lifetime telephone technical advice and stock standard & performance parts. Servicing & Maintenance checks are also available – Call for details.

Build up icon

Assembly

As standard, this model requires partial assembly. Approx. 60 minutes. Please see our example assembly videos for more information. This vehicle is shipped with transport oil only. An oil change must be completed before any use. Carb may require setting correctly. If you are unable to do this you should choose full assembly and this will be taken care of by ourselves.

Warranty icon

Warranty

Standard 30 Days Full Cover / 6 Month Manufacturing Defect Warranty (Excludes Consumable Items). Unless otherwise stated this product is not designed for Motocross, Mini or BMX tracks and such use will invalidate the warranty. Limitations – Any modification, use of noncertified accessories, water ingress, misuse or incorrect assembly, lack of or incorrect maintenance, incorrect parts installation, or collision damage, will invalidate the warranty. Commercial use is prohibited.

Advice icon

Advice

A mechanically able person will be required to carry out the assembly and long-term maintenance of this product. Maintenance will be required to service the engine and fit parts to this product as usage requires. Please consider these requirements before purchasing the item. We do offer a FREE support line where our mechanics will diagnose problems and help you source any required parts, but you will be required to fit those parts and assist in the diagnosis.
